Specifications
Solid aluminium housing for efficient heat dissipation and maximum durability.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications
Product code 02040585 Product Name MS6 Warning Lighthead (Hood/Horizontal) DC - Blue/Amber Categories Lighting, Directionals, Mini Stealth, MS6, Modules Product Type Products Dimensions Length 107mm Dimensions Height 24mm Dimensions Width 42mm Colour Type Dual Colour Maximum Current 1.2A@12VDC / 0.6A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 13.8W Synchronisation 15 Unit Sync LED Colour Blue/Amber Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, SAE J595 Class 1, California Title 13 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Hood Mount Cable Type Cable (Pigtail) LED Quantity 12LED IP Rating IP67 Flash Patterns 12 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

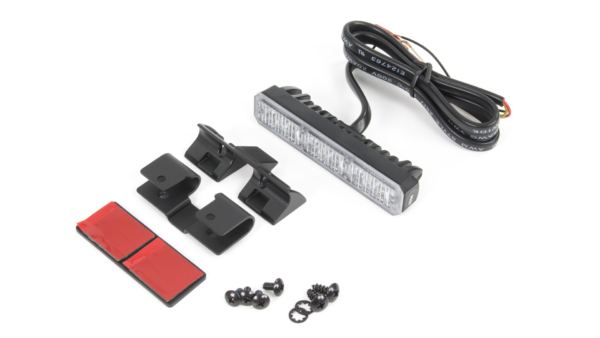

Mounting
-
- Downloads
