Specifications
Product Specifications

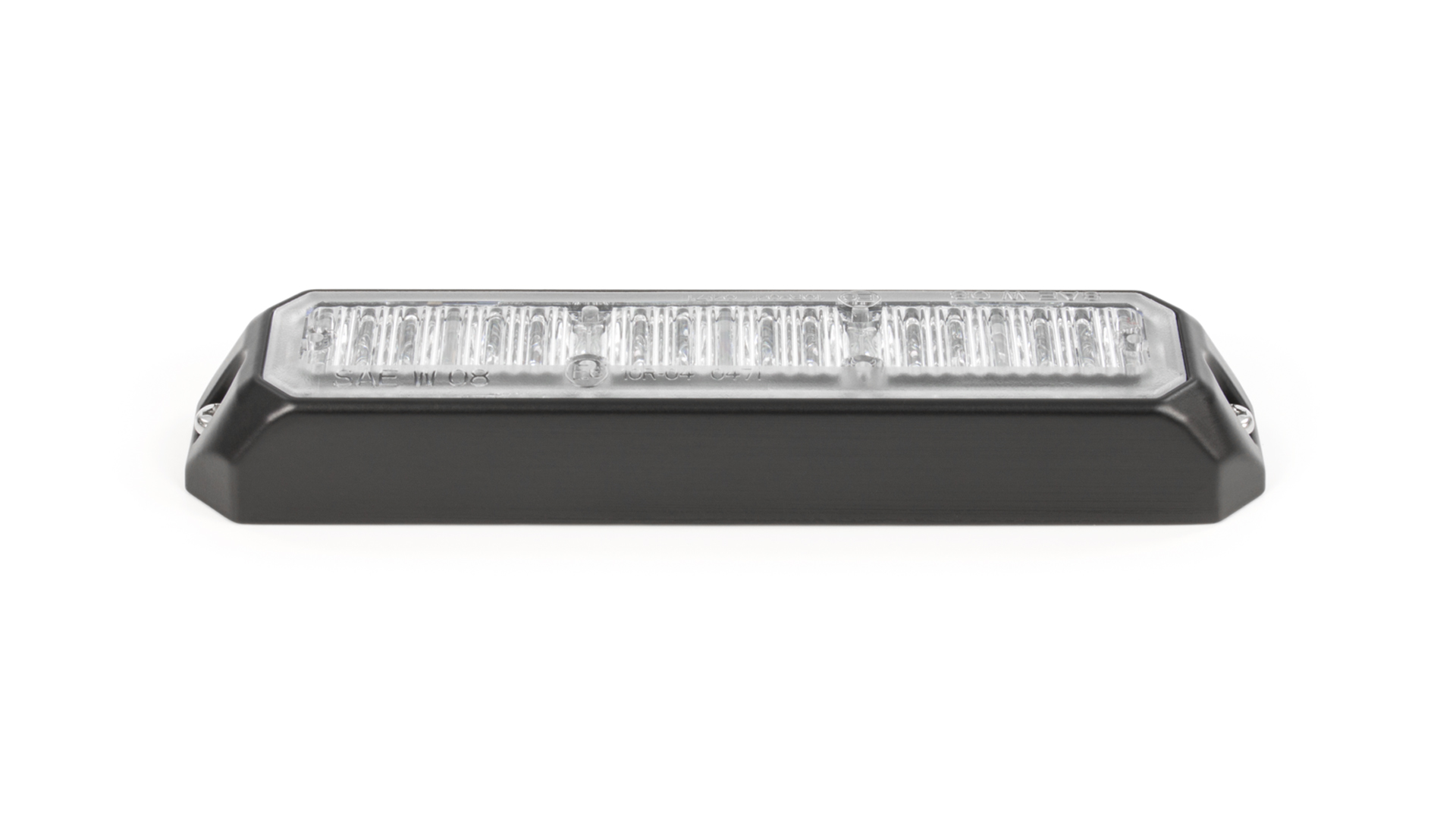

Product code 02040813 Product Name MS6 (Surface) - RC (Horizontal) Categories Directionals, MS6, Mini Stealth, Modules Product Type Products Dimensions Length/width 127.5mm (5.0") Dimensions Height 27.8mm (1.1") Dimensions Depth 17.2mm (0.68") Bezel Colour Black Colour Type Single Colour Maximum Current 0.80A@12VDC / 0.40A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 9.6W Synchronisation 15 Unit Synchronisation LED Colour Red LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 6x LEDs IP Rating IP67 Flash Patterns 19 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Mounting
-
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Side by Side)
- Black
-
-
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Top/Bottom)
- Black
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
