Specifications
Product Specifications
Product code 02140063 Product Name OE9 Warning Lighthead - Green Categories Warning Lamps, Wide Angle, One Eighty, Modules Product Type Products Dimensions Length 128mm (5.04") Dimensions Height 38mm (1.49") Dimensions Width 35mm (1.38") Colour Type Single Colour Maximum Current 1.16A@12VDC / 0.58A@24VDC Maximum Power 14W Synchronisation 15 Unit Sync LED Colour Green LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 9x LEDs IP Rating IP68 Flash Patterns 12 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

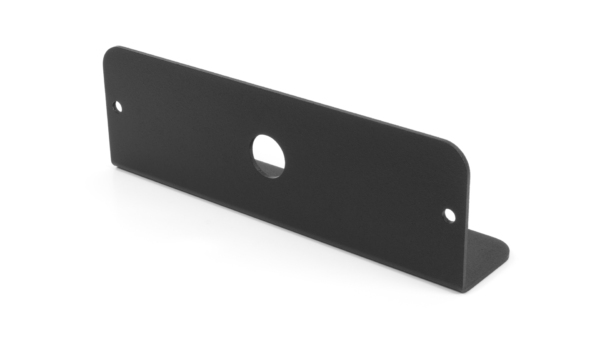

Mounting
-
- Downloads
