Specifications
Built-in 12 selectable flash patterns.
True 180° wide-angle LED warning module.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant design for internal or external use.
LEDs rated to 100,000 hours of operation.
Aluminium base for heat dissipation.
Reverse polarity protection.Product Specifications
Product code 02140049 Product Name OE9 Warning Module - White (12~24VDC) Categories Warning Lights, Wide Angle, One Eighty, Modules Product Type Products Dimensions Length 128mm (5.04") Dimensions Height 38mm (1.49") Dimensions Width 35mm (1.38") Colour Type Single Colour Maximum Current 1.16A@12VDC / 0.58A@24VDC Maximum Power 14W Synchronisation 15 Unit Synchronisation LED Colour White LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 9x LEDs IP Rating IP68 Flash Patterns 12 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

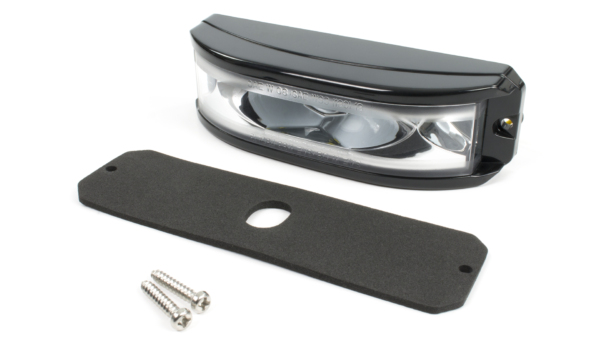

Mounting
-
