Specifications
10.6mm super low-profile.
100,000 hours rated long-life LED.
Built-in 16 flash patterns, all self-contained.
Aluminium base for best durability and heat dissipation.
Multi-units synchronization in simultaneous or alternating flash.
Weatherproof and shockproof capability for all environment.
Slim base design for better visual aesthetic.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications
Product code 02160139 Product Name ST3 Warning Lighthead - Amber Categories Warning Lamps, Super Thin, Directionals, ST3, Modules Product Type Products Dimensions Length 86mm (3.38") Dimensions Height 27mm (1.06") Dimensions Width 10.6mm (0.41") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 0.59A@12VDC / 0.3A@24VDC Operating Temperature -30°C~+65°C Maximum Power 7.1W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX8 Flash Patterns 1 Flash Pattern Wire Length 265mm Mounting Orientation Horizontal Gross Weight 0.05kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-

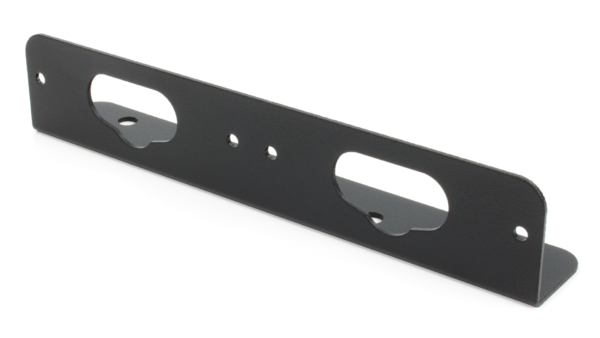

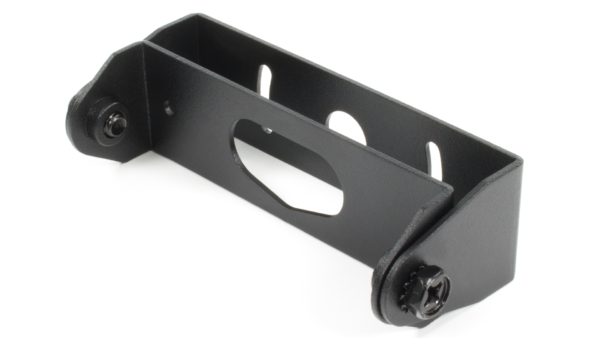

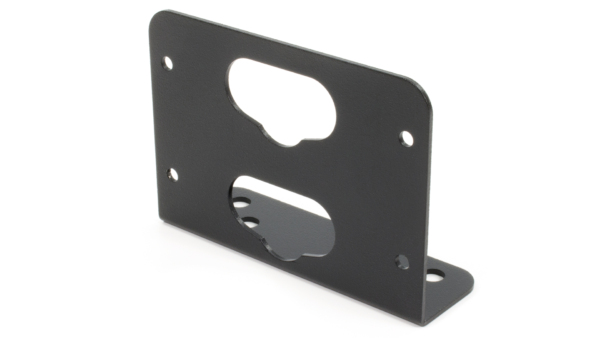

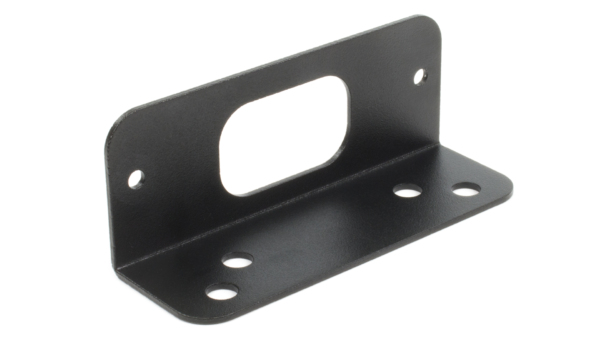

Mounting
-
- Downloads
