Specifications
Product Specifications

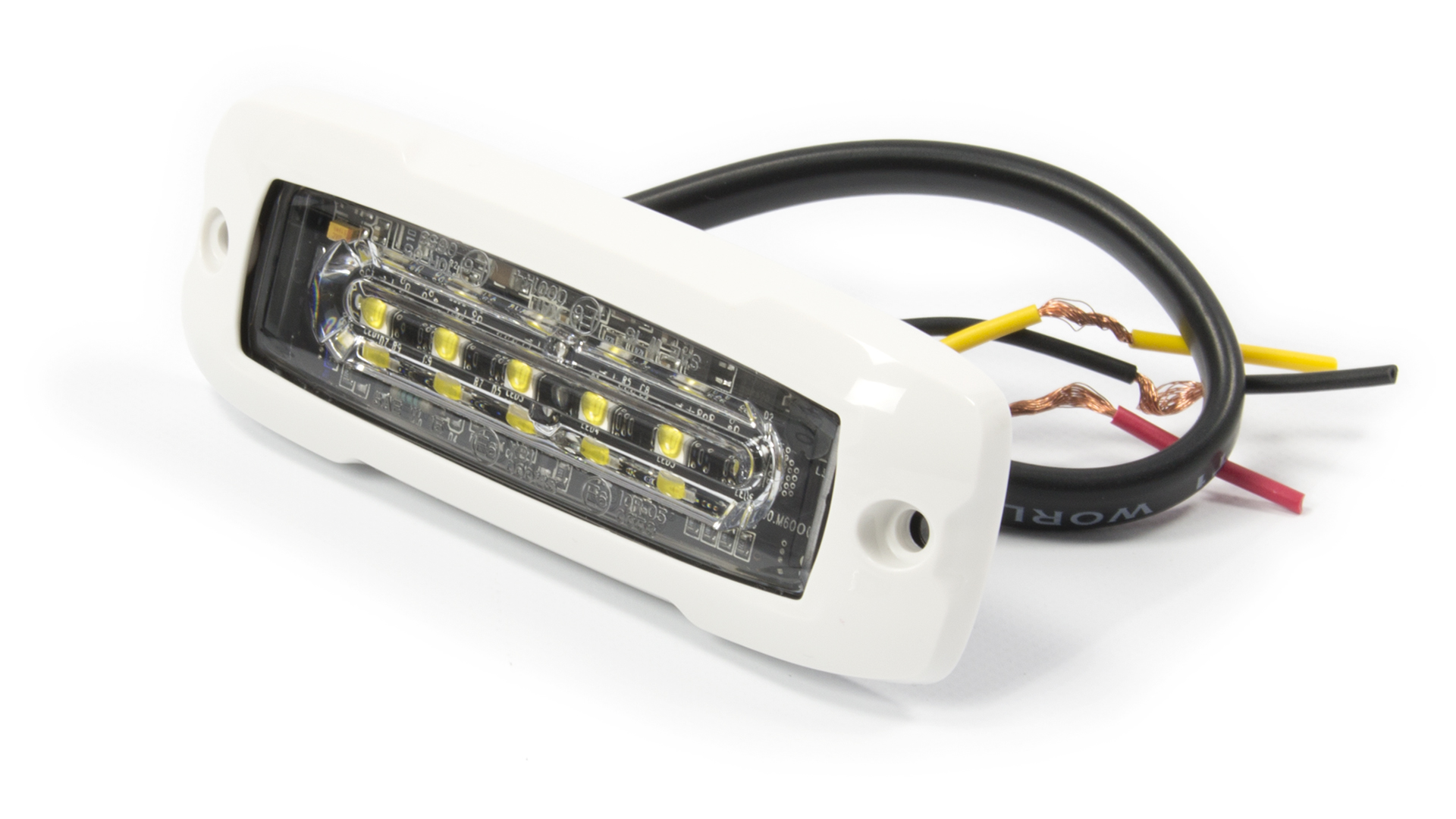

Product code 02120188 Product Name XT6 Warning Lighthead (White Bezel) - Blue Categories Warning Lamps, XT6, Directionals, Modules, Xtreme Thin Product Type Products Dimensions Length 98.54mm (3.88") Dimensions Height 35.07mm (1.38") Dimensions Width 10mm (0.39") Bezel Colour White Colour Type Single Colour Maximum Current 0.88A @12VDC / 0.44A @24VDC Maximum Power 10.6W Synchronisation 15 Unit Sync LED Colour Blue LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XB1), SAE J595 Class 1, CA13 Optic Type Xtreme Optics Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX8 Flash Patterns 16 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.10kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
