Introducing the SceneMax

Say hello to the SceneMax Combined LED Warning & Scene Light

The SceneMax is a high power two-in-one LED module that provides both an intense warning signal and a wide angle scene light in the same lamp body. The small profile and footprint make this a very versatile product to install in limited spaces, saving valuable time and limiting damage to vehicle panels.

Explore

Putting the light back on the scene

With multi-unit synchronisation and “Scene to cruise” function, the SceneMax is available with either amber, blue, red or white warning function. The warning signal is approved to ECE Regulation 65 Class 2 and the scene lamp provides up to 1700 lumens of valuable and effective scene illumination.

Key Features

ECE R65 (XA2, XB2, XR2), ECE R10, CA Title 13, SAE J595 & J845 Class 1.
2-in-1 unit provides powerful warning signal & wide-angle scene illumination.
‘Scene-to-Cruise’ function switches warning to cruise automatically.
Over 1700 lumen Scene light output.
Small profile and footprint for all vehicle application.
Multi-unit synchronisation in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for external use.
Multi-voltage input 12~24VDC.

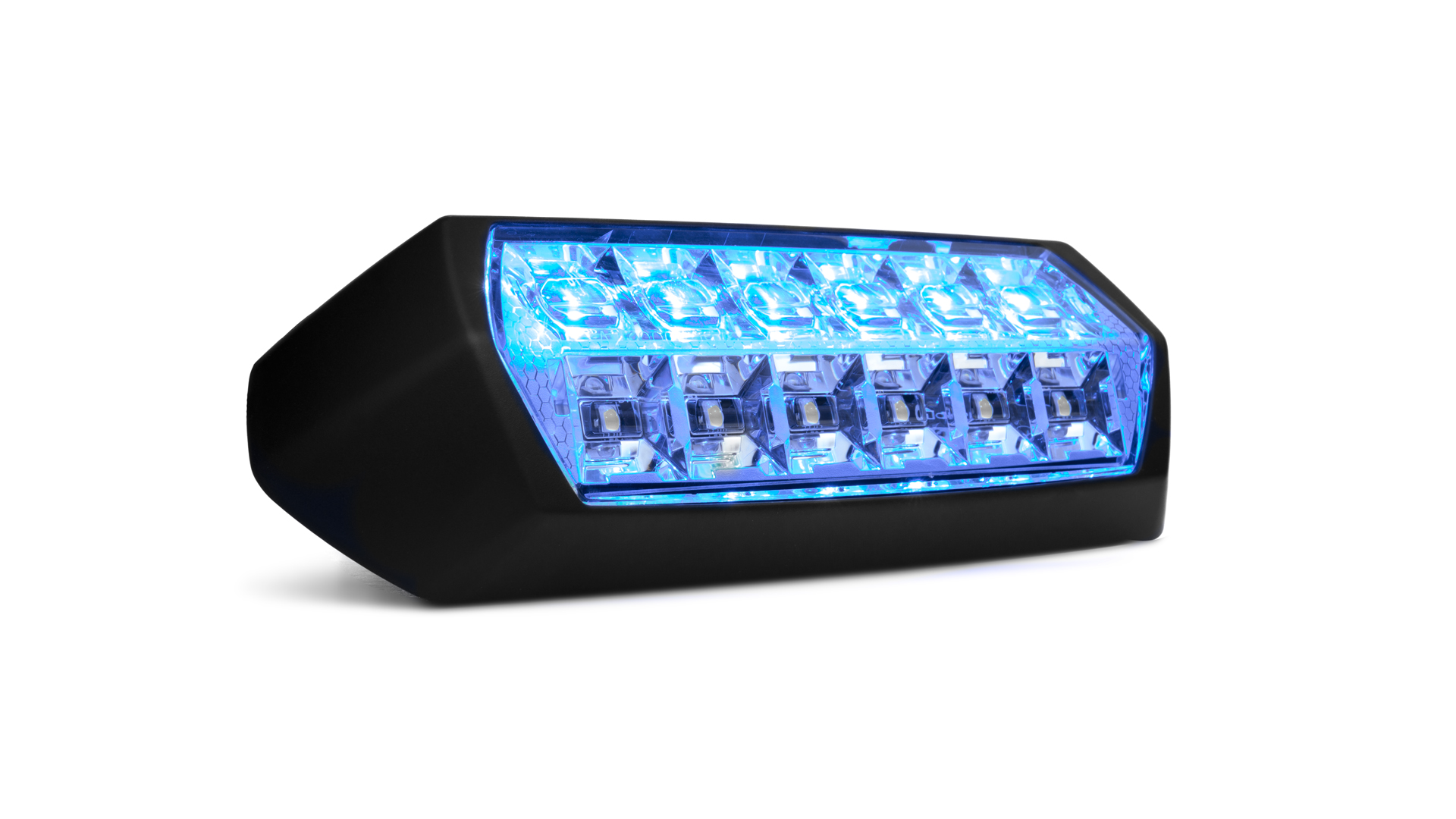

2-in-1 SceneMax Lighthead

High power warning and scene light combo.

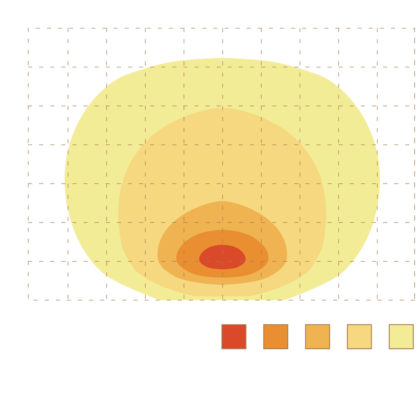

Illuminance Pattern

Broad Light Output, spread and coverage.

Exceeds ECE R65 Class 2

Powerful light output certified to meet your requirments

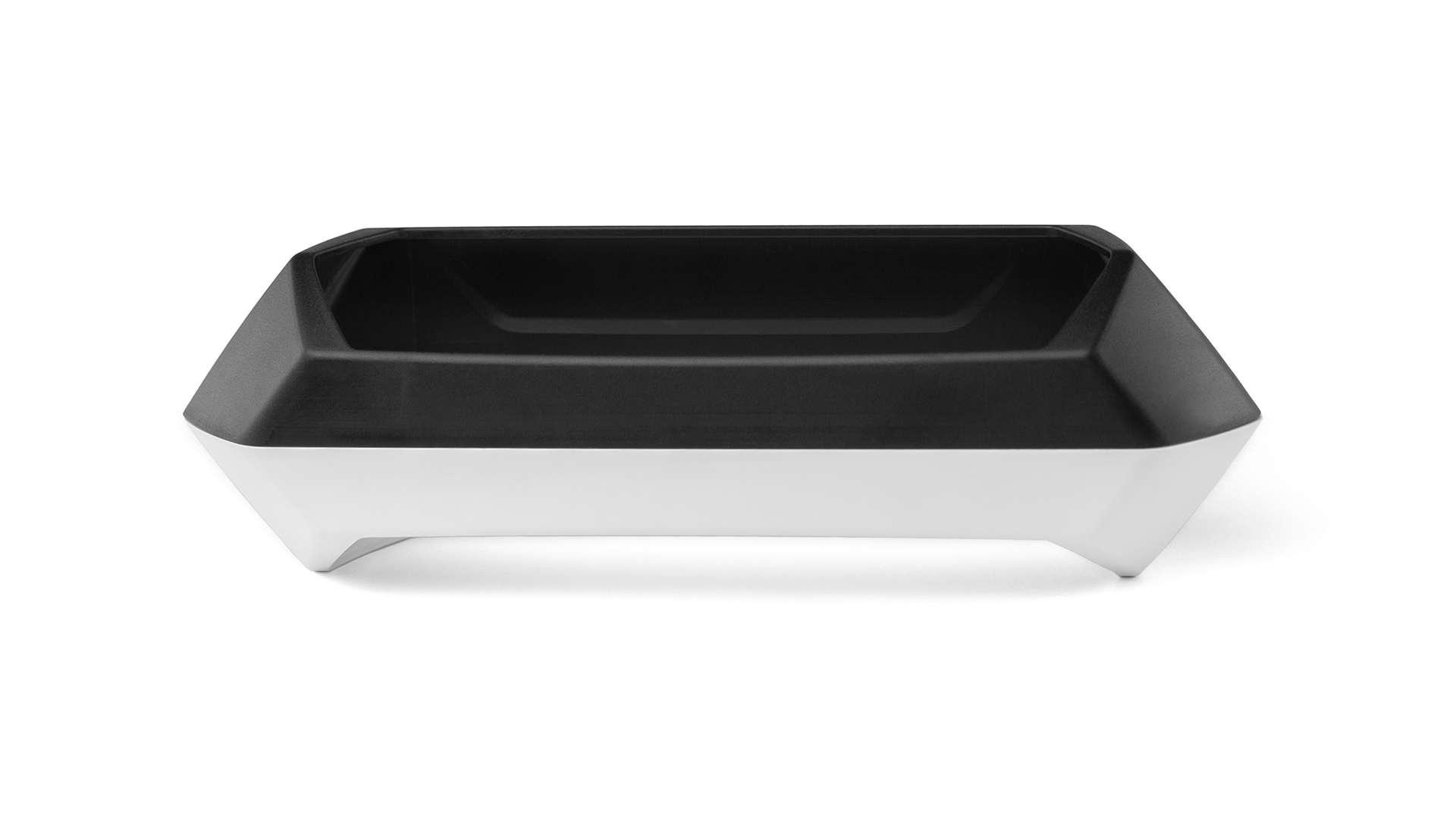

Various coloured bezels available

The SceneMax can be purchased with a variety of coloured bezels, including; black, white, red, yellow and chrome in order to best suit your vehicle. Our Red and Yellow bezels have been specifically designed for Fire Rescue & Ambulance vehicles.

Flash Patterns

The SceneMax is the most diverse Warning Lighthead in the market, offering multiple warning functions whilst providing superior scene light output. This edition features 29 European Warning Patterns.

1	Double	[2Hz]	11	Quint	[SAE]	21	Quad	[Split]
2	Single	[2Hz]	12	Mega		22	Quint	[Split]
3	Triple	[2Hz]	13	Giga		23	Mega	[Split]
4	Quad	[2Hz]	14	Ultra	[SAE]	24	Ultra	[Split]
5	Random		15	Single-Quad		25	Single-Quad	[Split]
6	Steady EF*		16	Single H/L		26	Single H/L	[Split]
7	Single	[SAE/CA13]	17	Single-Triple-Quint		27	Cruise L
8	Double	[SAE]	18	Steady Scene		28	Cruise M
9	Triple	[SAE]	19	Single	[Split]	29	Cruise H
10	Quad	[SAE]	20	Double	[Split]

* For use with external flash controller.

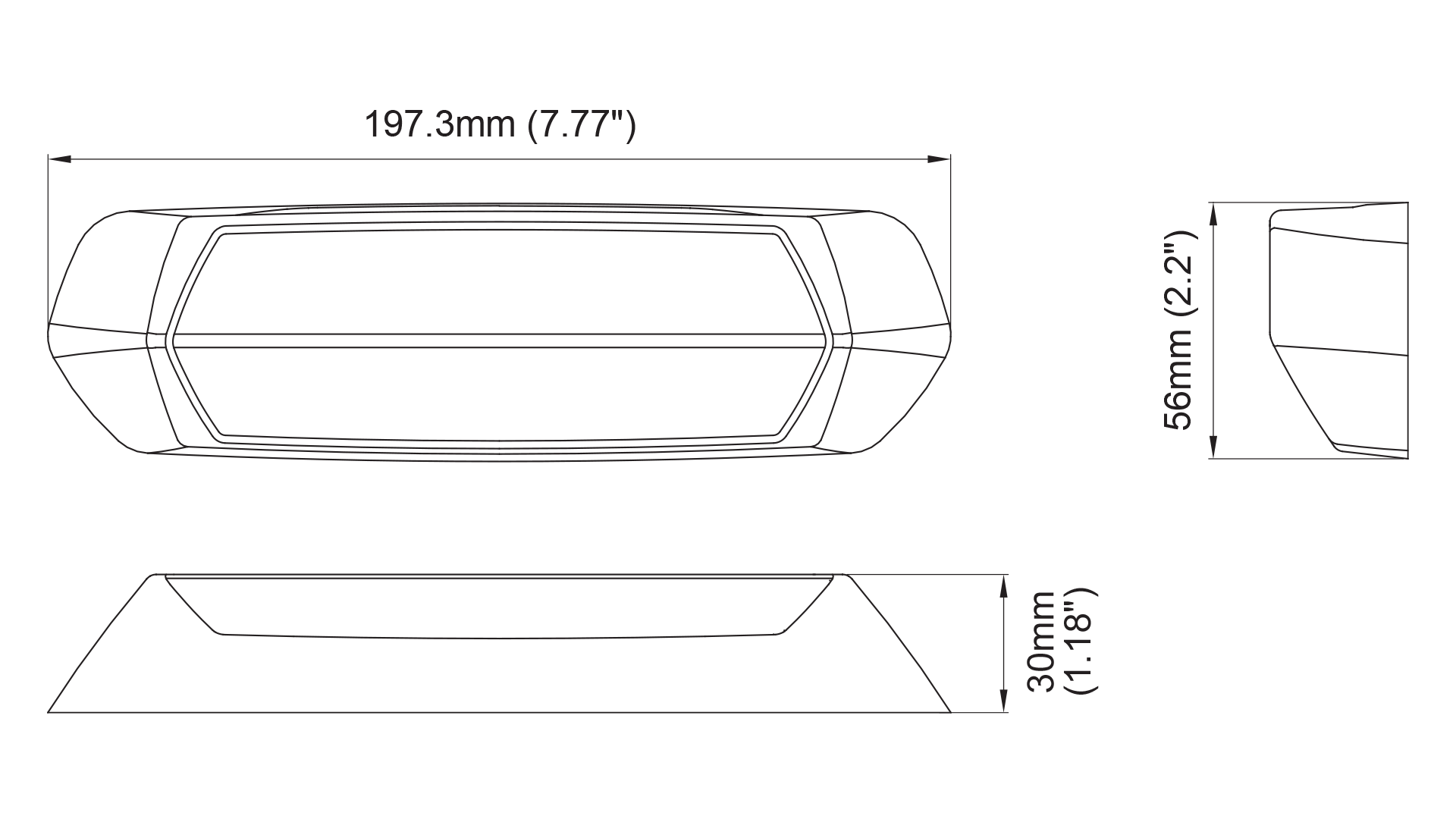

SceneMax Outline Drawing

The Scenemax’s low profile makes it so desirable, measuring at only 197mm in length, 56mm high and 30mm in depth, its a compact size makes this warning system perfect for all vehicle applications.

**Please note:** This drawing is **NOT** to scale.

Scenemax – AWC (Black Bezel)
- ECE-R10, ECE-R65 (XA2), SAE J595 Class 1, CA13, SAE J845 Class 1, CISPR25
- Single Colour
- Clear Lens
- IPX7
- 12VDC~24VDC

Scenemax – BWC (Black Bezel)
- ECE-R10, ECE-R65 (XB2), SAE J595 Class 1, CA13, SAE J845 Class 1, CISPR25
- Single Colour
- Clear Lens
- IPX7
- 12VDC~24VDC
Scenemax – RWC (Black Bezel)
- ECE-R10, ECE-R65 (XR2), SAE J595 Class 1, CA13, SAE J845 Class 1, CISPR25
- Single Colour
- Clear Lens
- IPX7
- 12VDC~24VDC
Scenemax – WWC (Black Bezel)
- ECE-R10, SAE J595 Class 1, CA13, SAE J845 Class 1, CISPR25
- Single Colour
- Clear Lens
- IPX7
- 12VDC~24VDC
