Specifications
Product Specifications

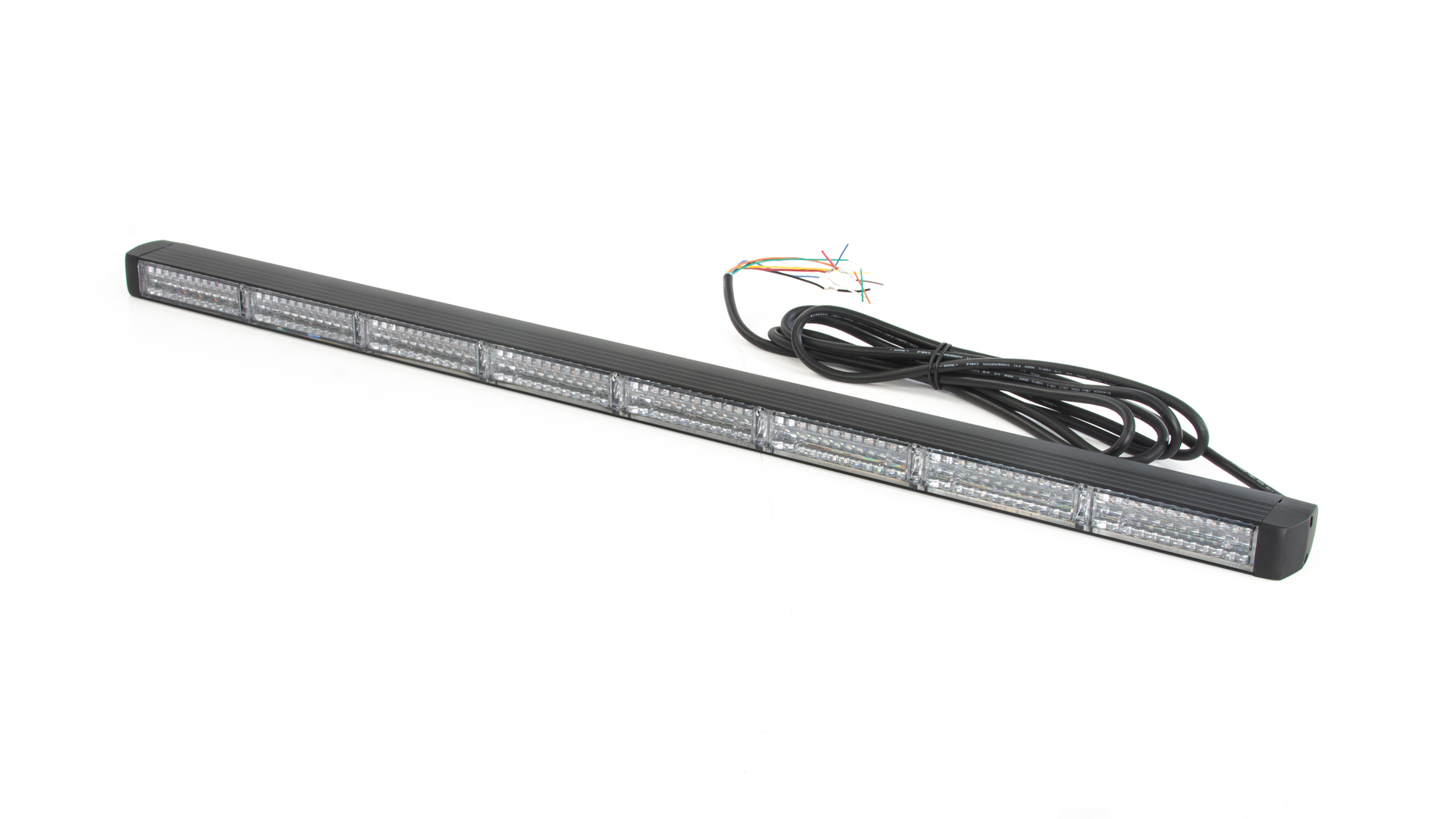

Product code 01110074 Product Name Horizon DC Traffic Director (8 Lighthead) - RW8 Categories Warning Lights, Horizon, Horizon (Dual Colour), Traffic Advisors Product Type Products Dimensions Height 32mm (1.26") Dimensions Depth 53.4mm (2.1") Colour Type Dual Colour Maximum Current 6.00A@12VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 72W Traffic Advisor Length 0855mm (33.7") LED Colour Red LEDs, White LEDs Fuse Rating 7.5A Lens Colour Clear Lens Traffic Director Functions Traffic Arrow, Warning Mode, End Flashers Compliance ECE-R10, CISPR25, SAE J595 Class 1, CA13 Input Voltage 12VDC Optic Type Horizon Optics Mounting Option 2-Bolt Mount Cable Type 1 Cable Harness (6 Function/2 Power) LED Elements 96x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Traffic Arrow Patterns 27 Traffic Arrow Wire Length 3000mm Mounting Orientation Horizontal Gross Weight 2.4kg Warranty 5 Year Warranty -
