Specifications
Product Specifications

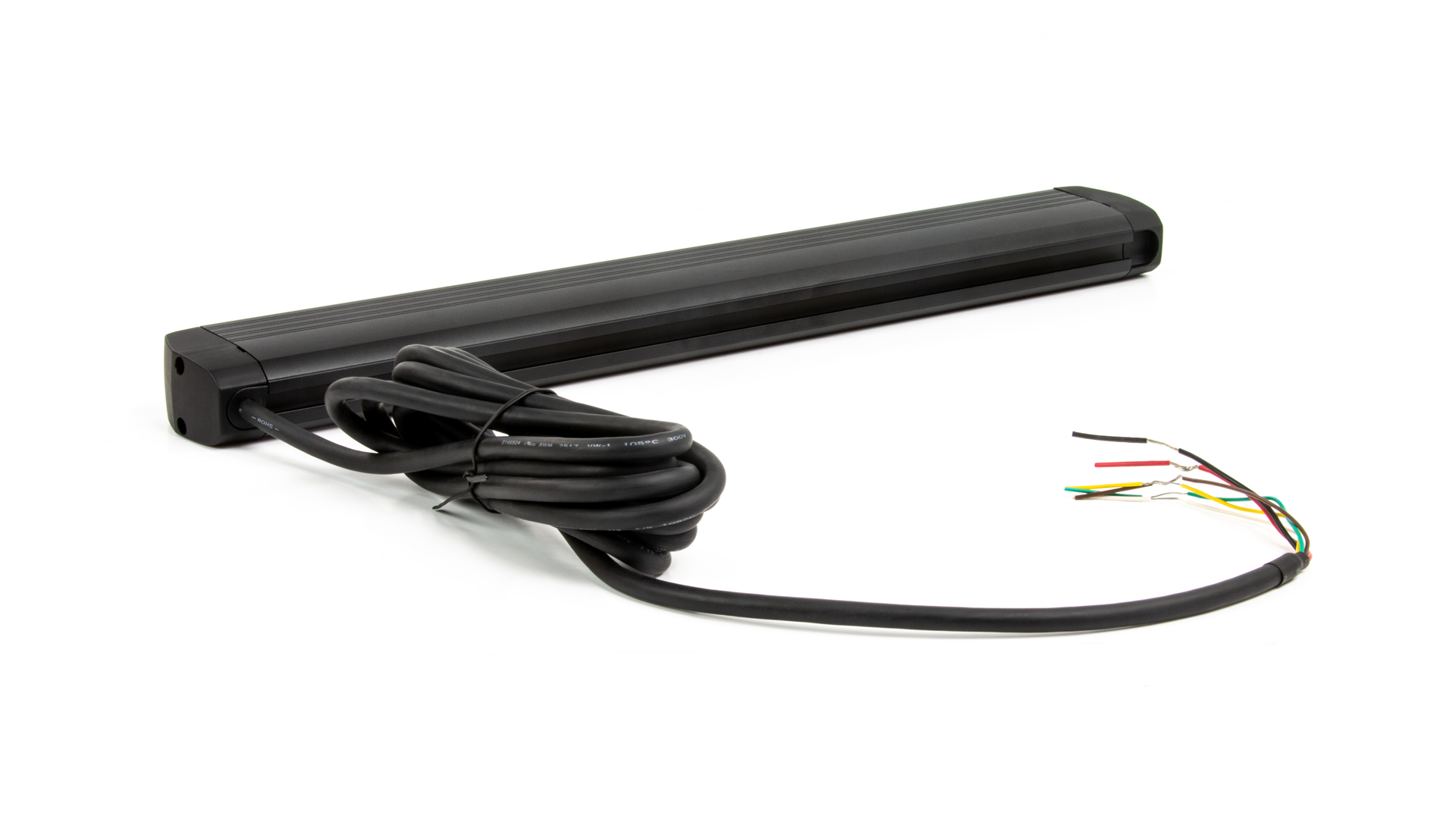

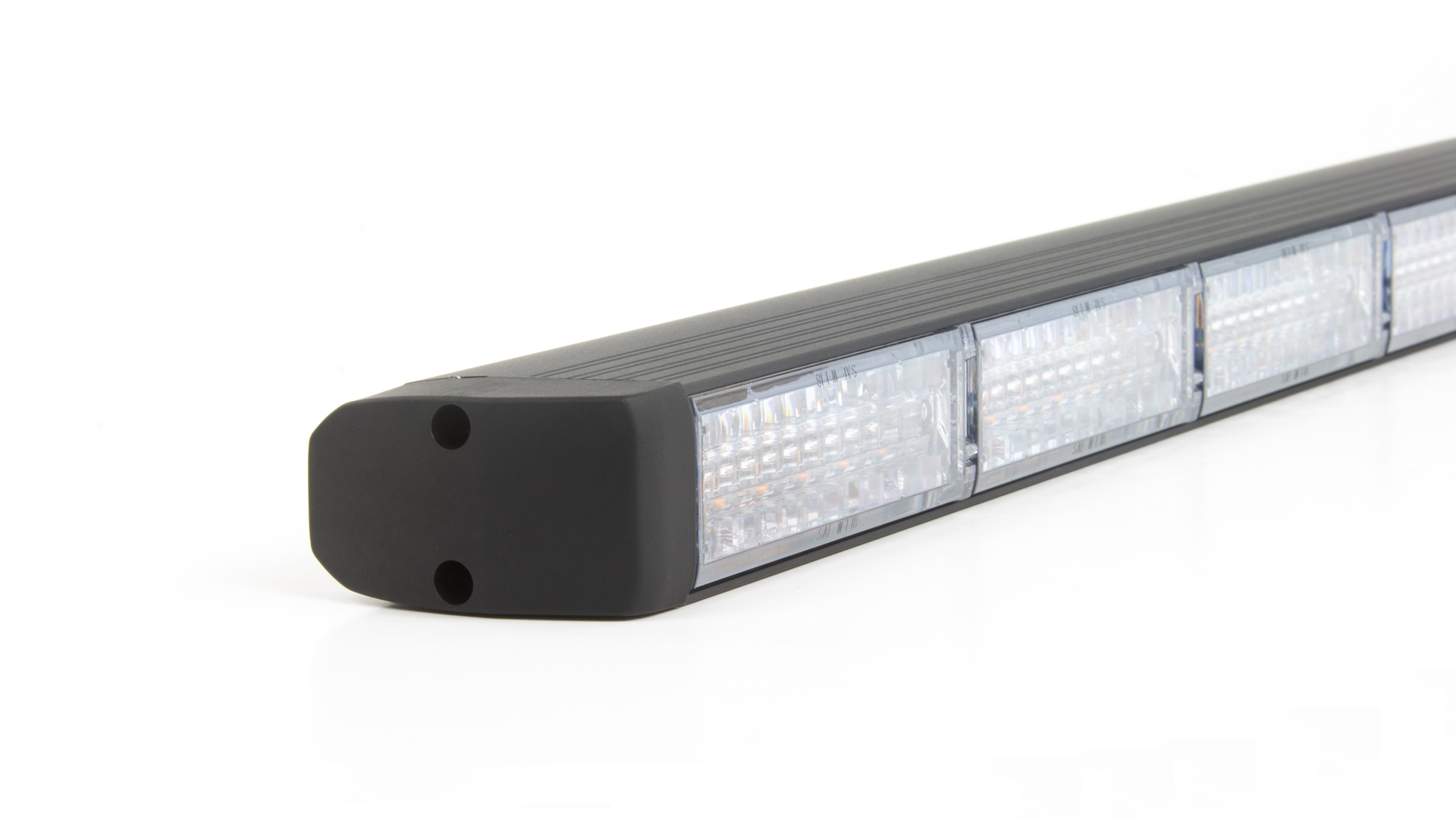

Product code 01110159 Product Name Horizon DC Warning Stick (4 Lighthead) - BR4 Categories Warning Lamps, Horizon, Horizon (Dual Colour), Traffic Advisors Product Type Products Dimensions Height 32mm (1.26") Dimensions Width 53.4mm (2.1") Colour Type Dual Colour Storage Temperature -40°C - +75°C Maximum Current 3A@12VDC Operating Temperature -30°C~+65°C Maximum Power 36W Traffic Advisor Length 0447mm (17.6") LED Colour Blue LEDs, Red LEDs Fuse Rating 4A Lens Colour Clear Lens Traffic Director Functions Warning Mode Compliance ECE-R10, CISPR25, SAE J595 Class 1, CA13 Input Voltage 12VDC Optic Type Horizon Optics Mounting Option 2-Bolt Mount Cable Type Single Harness (4 Function/2 Power) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Wire Length 3000mm Mounting Orientation Horizontal Gross Weight 1.75kg Warranty 5 Year Warranty -
