Specifications
Product Specifications

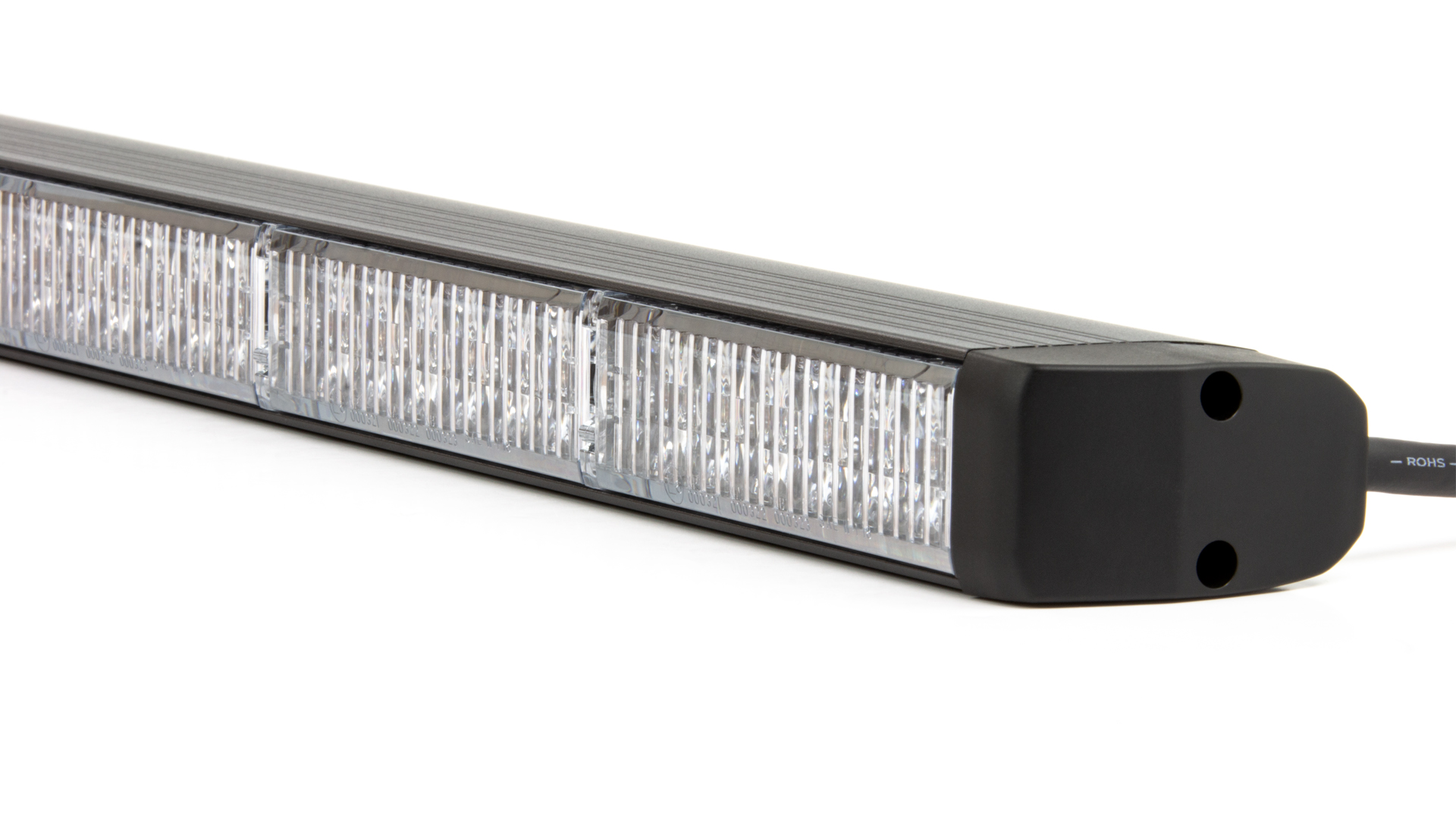

Product code 01100273 Product Name Horizon Traffic Director (6 Lighthead) - R3W3 Categories Warning Lights, Horizon, Horizon (Single Colour), Traffic Advisors Product Type Products Dimensions Height 32mm (1.26") Dimensions Width 53.4mm (2.1") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 5.16A@12VDC / 2.58A@24VDC Operating Temperature -30°C~+65°C Maximum Power 61.8W Traffic Advisor Length 0651mm (25.6") LED Colour Red LEDs, White LEDs Fuse Rating 6A@12VDC / 3A@24VDC Traffic Director Functions Traffic Arrow, Warning Mode, End Flashers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XR1), CISPR25, SAE J595 Class 1, CA13 Optic Type Horizon Optics Input Voltage 12VDC~24VDC Mounting Option 2-Bolt Mount Cable Type 1 Cable Harness (6 Function/2 Power) LED Quantity 36x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 3000mm Mounting Orientation Horizontal Gross Weight 2.25kg Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- ECE-R65 (XR1)
- Single Colour
- 2 Pin Connector
- Clear Lens
-
- Lightheads
- Single Colour
- 2 Pin Connector
- Clear Lens
- Horizon Optics
-
-
Mounting
-
-
-
-
- Powder-Coated Aluminium
- Angle Adjustable Bracket
- Black
-
