Specifications

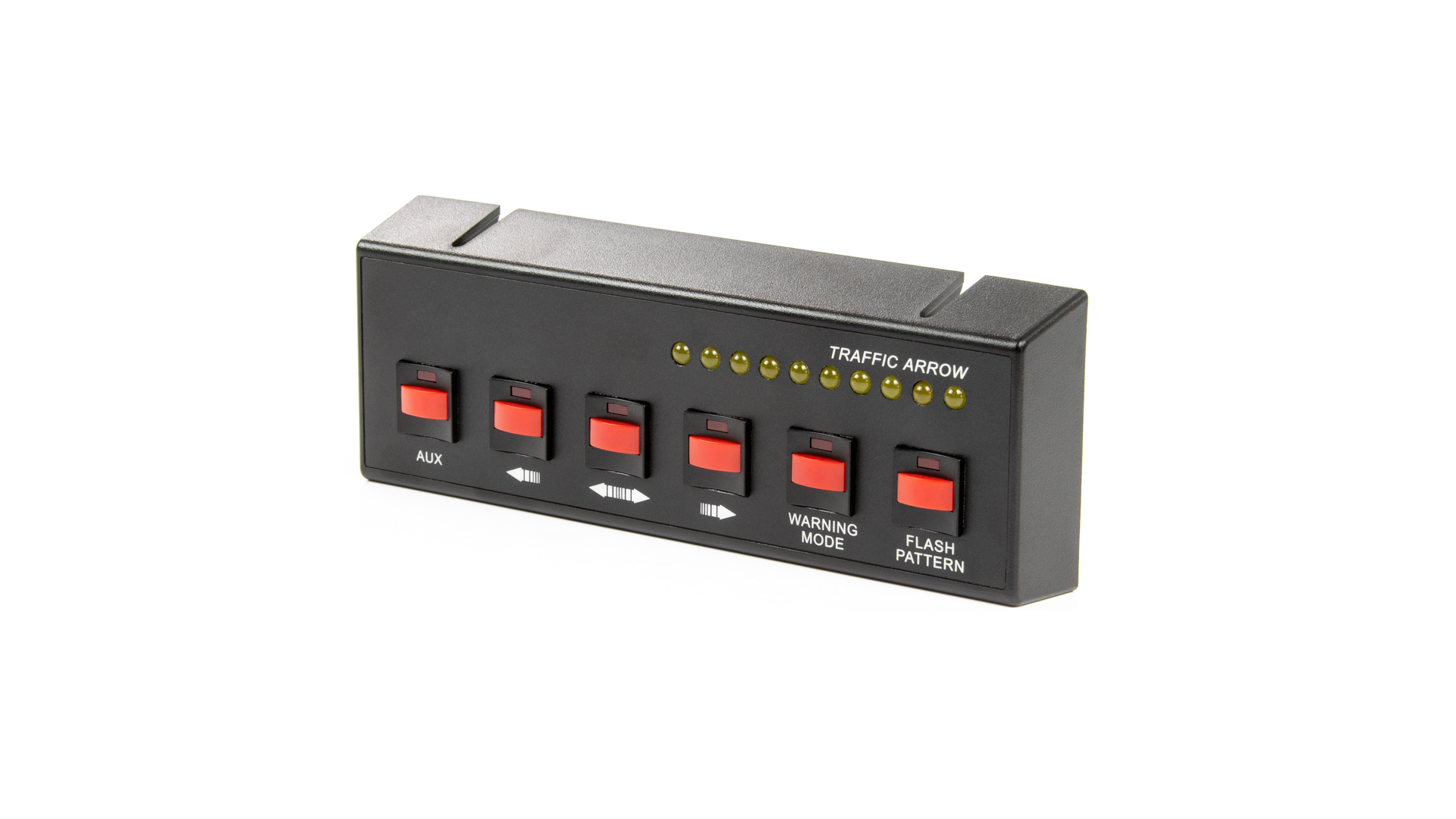

6 Buttons switch panel designated for Lightbar or Directional Advisor control.
Designated 10 LED indicators for lightbar or Directional Advisor signal display.
5 x maintained switches and 1 x momentary switch.
LED indicator for individual switch.
Tactile & clicky feedback buttons.Product Specifications
Product code 12050024 Product Name SW610 Switch/Control Panel (Traffic Advisor) Categories Electronic Equipment, SW610 Switch Panels, Control Systems Product Type Products Dimensions Length 163mm Dimensions Height 59mm Dimensions Width 22mm Operating Temperature -30°C to +65°C Switch Current 0.2A port / 1.0A 6 Ports Fuse Rating 5A Nominal Voltage 10-30VDC Mounting Option Console Mount Cable Type Cable (Pigtail) Wire Length 300mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 2 Year Warranty Indicator LEDs LED Indicators x10 Switch Quantity 5 Latching/1 Momentary - Downloads
