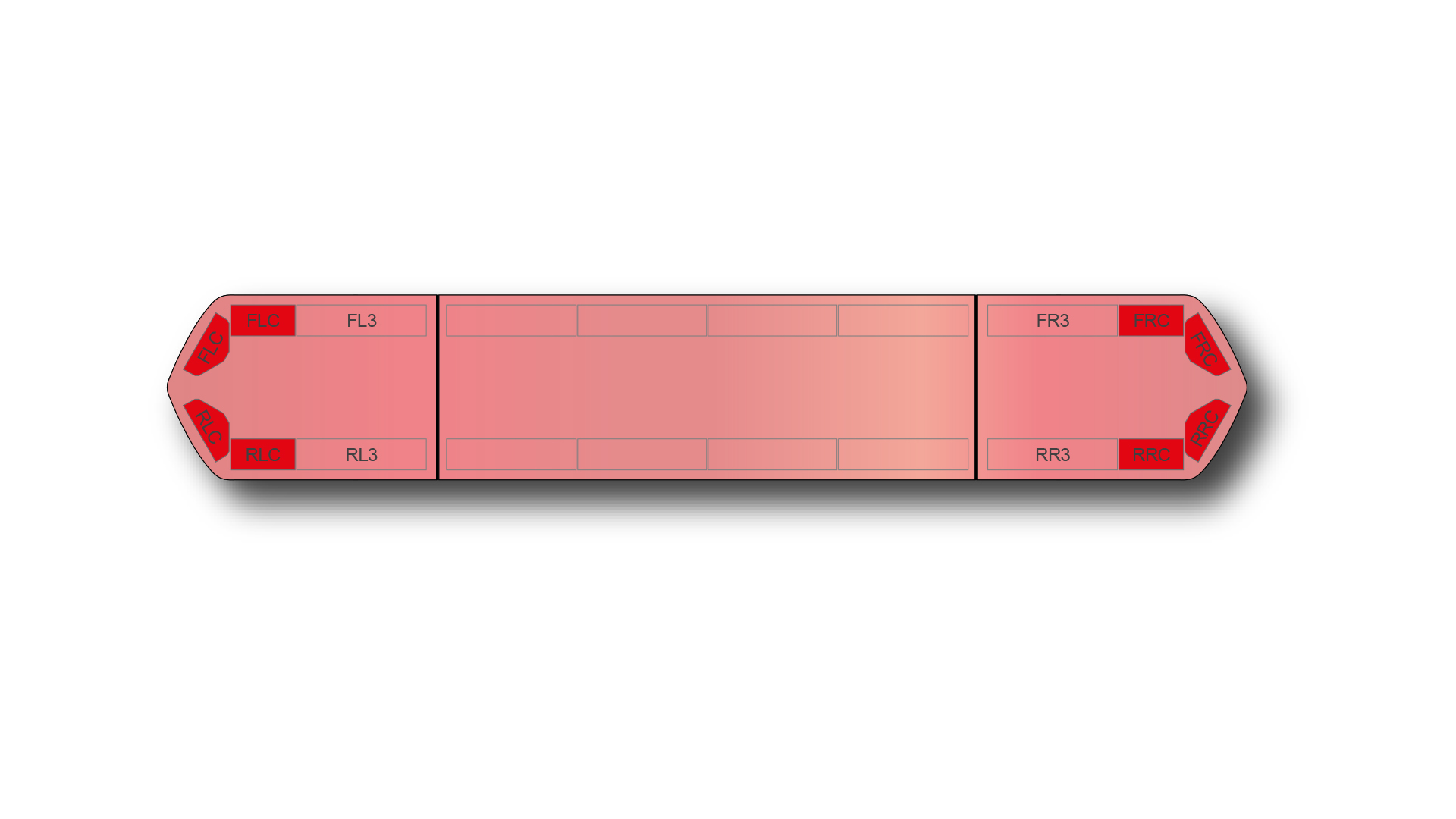

Kuiper FIT Lightbar, 1222mm (48″), 24x RED LEDs, RED LENSES, ECE R10, IPX5, Linear Optics, 31 Flash Patterns, Single Harness (2 Function/2 Power), Standard Feet, 12-24VDC.
-
Specifications
58.5mm (2.3″) height, 215mm (8.46″) width.
Extruded aluminum base for best rigidity and heat dissipation.
Sleek, low profile design with powerful 360° warning coverage.
Multi-Voltage Input 12-24VDC with EMC Compliance.
Easy maintenance and lighthead replacement.
Optional ICS (Illuminated Center Section).
Independent Cruise mode.
3 year warranty.Product Specifications
Product code 06540111 Product Name Kuiper FIT 1222mm (48") - RR Categories Lighting, Kuiper, Kuiper FIT (Standard), Lightbars, Kuiper FIT Product Type Products Dimensions Height 59mm Dimensions Width 215mm Colour Type Single Colour Lightbar Length 1222mm (48") LED Colour Red LEDs Lens Colour Red Lens Compliance ECE R10, CISPR25, SAE J845 Class 1, California Title 13 Optic Type Linear Optics Nominal Voltage 12-24VDC Mounting Option Standard Feet Type B Cable Type Single Harness (2 Function/2 Power) LED Quantity 24LED Lighthead Quantity 6x Lightheads IP Rating IPX5 Flash Patterns 31 Flash Patterns Warranty 3 Year Warranty -
Spare Parts
-
-
Mounting
-
New Product
-
-
-
-
-
-
-
-
-
-
-
Downloads
Cell2_KUIPER-FIT_SpecSheet_EN
pdf
878.86 KB
Download
Cell2_KUIPER-FIT_UserManual_A1_EN
pdf
280.41 KB
Download
Cell2_KUIPER_InstallationManual_EN
pdf
1.03 MB
Download
Cell2_KUIPER-FIT_SpecSheet_ES
pdf
18.05 MB
Download
Cell2_KUIPER_Installation Manual_ES
pdf
1,005.51 KB
Download
Cell2_KUIPER-FIT_UserManual_A1_ES
pdf
225.57 KB
Download
Cell2_KUIPER_Installation Manual_DE
pdf
1,009.64 KB
Download
Cell2_KUIPER-FIT_UserManual_A1_DE
pdf
223.09 KB
Download
Cell2_KUIPER-FIT_SpecSheet_FR
pdf
9.98 MB
Download
Cell2_KUIPER_Installation Manual_FR
pdf
1,013.65 KB
Download
Cell2_KUIPER-FIT_UserManual_A1_FR
pdf
220.83 KB
Download
Cell2_KUIPER-FIT_SpecSheet_IT
pdf
9.97 MB
Download
Cell2_KUIPER_Installation Manual_IT
pdf
984.53 KB
Download
Cell2_KUIPER-FIT_UserManual_A1_IT
pdf
225.55 KB
Download
