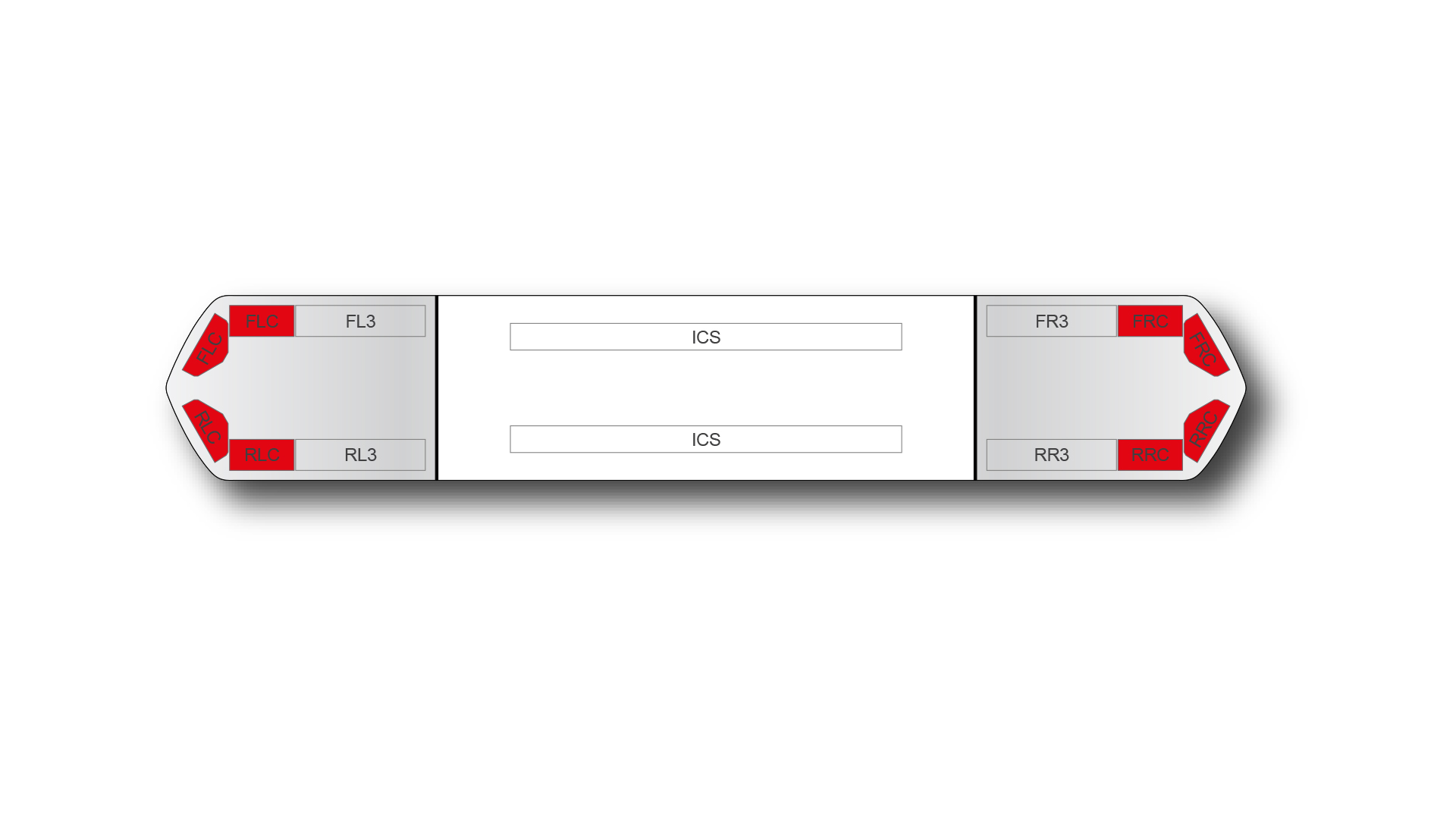

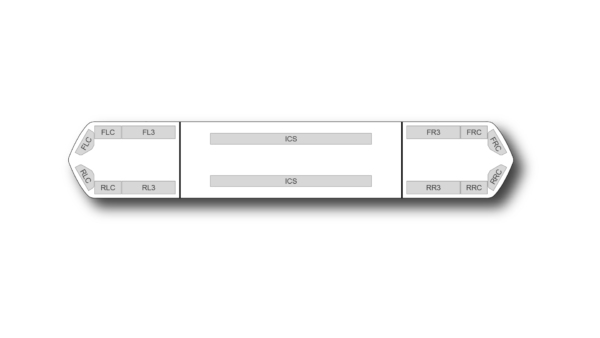

Kuiper FIT (Illuminated Centre) Lightbar, 1222mm (48″), 24x RED LEDs, 12x WHITE ICS, CLEAR/OPAL LENSES, ECE R10, IPX5, Linear Optics, 31 Flash Patterns, Single Harness (2 Function/2 Power), Standard Feet, 12-24VDC.
-
Specifications
58.5mm (2.3″) height, 215mm (8.46″) width.
Extruded aluminum base for best rigidity and heat dissipation.
Sleek, low profile design with powerful 360° warning coverage.
Multi-Voltage Input 12-24VDC with EMC Compliance.
Easy maintenance and lighthead replacement.
Optional ICS (Illuminated Center Section).
Independent Cruise mode.
3 year warranty.Product Specifications
Product code 06500122 Product Name Kuiper FIT Illuminated Centre 1222mm (48") - RC Categories Lighting, Kuiper, Lightbars, Kuiper FIT (Illuminated Centre), Kuiper FIT Product Type Products Dimensions Height 59mm Dimensions Width 215mm Colour Type Single Colour Lightbar Length 1222mm (48") LED Colour Red LEDs Lens Colour Clear Lens, Opal Lens Compliance ECE R10, CISPR25, SAE J845 Class 1, California Title 13 Optic Type Linear Optics Nominal Voltage 12-24VDC Mounting Option Standard Feet Type B Cable Type Single Harness (2 Function/2 Power) LED Quantity 24LED Lighthead Quantity 6x Lightheads IP Rating IPX5 Flash Patterns 31 Flash Patterns Warranty 3 Year Warranty -
