Legion FIT+ Lightbar, 0785mm (30.9″), 24x BLUE LEDs, CLEAR LENSES, ECE R10, ECE R65 (TB1), IPX4K, D-Fuser Optics, 7 Flash Patterns, 1 Cable Harness (8 Function/2 Power), Standard Feet, 12~24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
Optional Takedowns and Alley Lights are available.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06270049 Product Name Legion FIT+ 0785mm (30.9") - BC (12~24VDC) Categories Warning Lights, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available Steady On, Cruise Light, Alley Lights, Take-Downs Dimensions Length/width 785mm (30") Default Functions ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Maximum Current 5.7A@12.8VDC / 2.9A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 0785mm (30.9") LED Colour Blue LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB1) Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 1 Cable Harness (8 Function/2 Power) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Net Weight 9.4kg Gross Weight 10.4kg Warranty 5 Year Warranty -

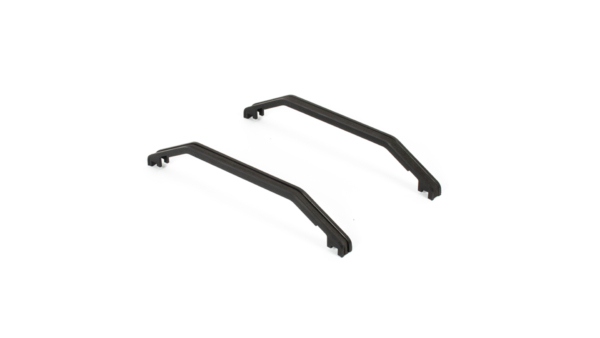

Spare Parts
-
-
Accessories
-
-
Mounting
-
- Downloads
