Kuiper Series

All you need and no more!

Introducing the Kuiper LED Lightbar with all the versatility and features you need, with simplicity. With a low profile and a narrow form, this new range offers installation advantages for multiple applications. The Kuiper Lightbar is available in Fit, Fit+ and HE versions and can be customised with cruise mode, ICS, STT, Take-Down light and Alley light.

Available with Amber, Blue, Clear, Red or Opal UV-resistant lenses and Amber, Blue, Red or White LEDs.

Explore

Which is best for you?

Our range offer versatile functionalities depending on your requirements.

Kuiper High End

3+3 LED corner Lightheads, optional middle lightheads/take downs/STT/alley-lights/ICS, Cruise Mode, clear UV stabilised lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 36 flash patterns.

Explore Kuiper HE

Kuiper FIT+

3+3 LED corner Lightheads, optional middle lightheads, Cruise Mode, clear UV stabilised lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 36 flash patterns.

Explore Kuiper FIT+

Kuiper FIT

3+3 LED corner Lightheads, 12 ICS LEDs, optional middle lightheads/ICS, clear UV stabilised and opal lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 31 flash patterns.

Explore Kuiper FIT

Optional Alley Lights, Take Down, STT and ICS.

Multiple configurations are available with the Kuiper due to its extremely versatile software.

Kuiper FIT | Kuiper FIT+ | Kuiper HE

Learn more

Customise it to your needs

The Kuiper series can be customised with optional lightheads:

Corner Lighthead
Illuminated Centre Section (ICS)
Middle Lighthead (Short)
Middle Lighthead (Standard)

Kuiper Flash Patterns

The Kuiper Series Lightbar features a choice of 36 Warning Patterns.

1	Double [2Hz]	All	19	Side-by-Side Ultra	NA
2	Quad [2Hz]	All	20	Rotator1 (fast)	NA
3	Single [2Hz]	All	21	Rotator2 (slow)	NA
4	Double (Corners) [2Hz]	All	22	Double [2Hz]	Split
5	Quad (Corners) [2Hz	All	23	Quad [2Hz]	Split
6	Single (Corners) [2Hz]	All	24	Single [2Hz]	Split
7	Random	All	25	Double (Corners) [2Hz]	Split
8	Single	All	26	Quad (Corners) [2Hz]	Split
9	Double	All	27	Single (Corners) [2Hz]	Split
10	Quad	All	28	Random	Split
11	Quint	All	29	Single	Split
12	Mega	All	30	Double	Split
13	Ultra	All	31	Quad	Split
14	Cruise (Corners)	All	32	Quint	Split
15	Cruise	All	33	Mega	Split
16	Single-Quad	All	34	Ultra	Split
17	Single H/L	All	35	Single-Quad	Split
18	Side-by-Side Single	NA	36	Single H/L	Split

Note: Actual approval is based on the model ordered.

Dimensions

The Kuiper is 58.5mm in height and 215mm wide, it’s available in 4 different lengths, 1075mm, 1222mm, 1369mm or 1516mm

Kuiper FIT+ 1075.4mm (42.3″) – RC
- ECE-R10, CA13, SAE J845 Class 1, CISPR25
- Single Colour
- 1075.4mm (42.3″)
- Clear Lens
- IPX5

Kuiper FIT+ 1369.6mm (53.9″) – AA
- ECE-R10, ECE-R65 (TA1), CA13, SAE J845 Class 1, CISPR25
- Single Colour
- 1369.6mm (53.9″)
- Amber Lens
- IPX5

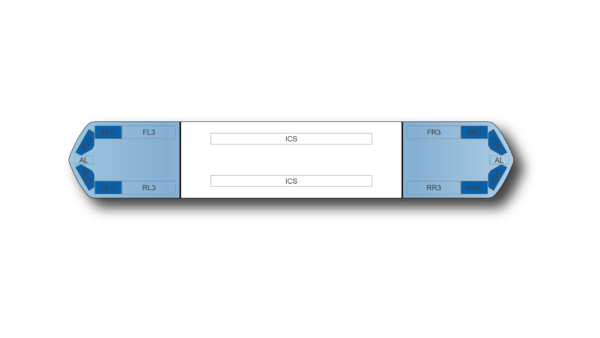

Kuiper HE Illuminated Centre 1222.4mm (48.1″) – BB
- ECE-R10, ECE-R65 (TB1), CA13, SAE J845 Class 1, CISPR25
- Single Colour
- 1222.4mm (48.1″)
- Blue Lens (Dark), Opal Lens
- IPX5
Kuiper FIT+ 1369.6mm (53.9″) – BB
- ECE-R10, ECE-R65 (TB1), CA13, SAE J845 Class 1, CISPR25
- Single Colour
- 1369.6mm (53.9″)
- Blue Lens (Dark)
- IPX5
